Openterface KVM Extension for uConsole

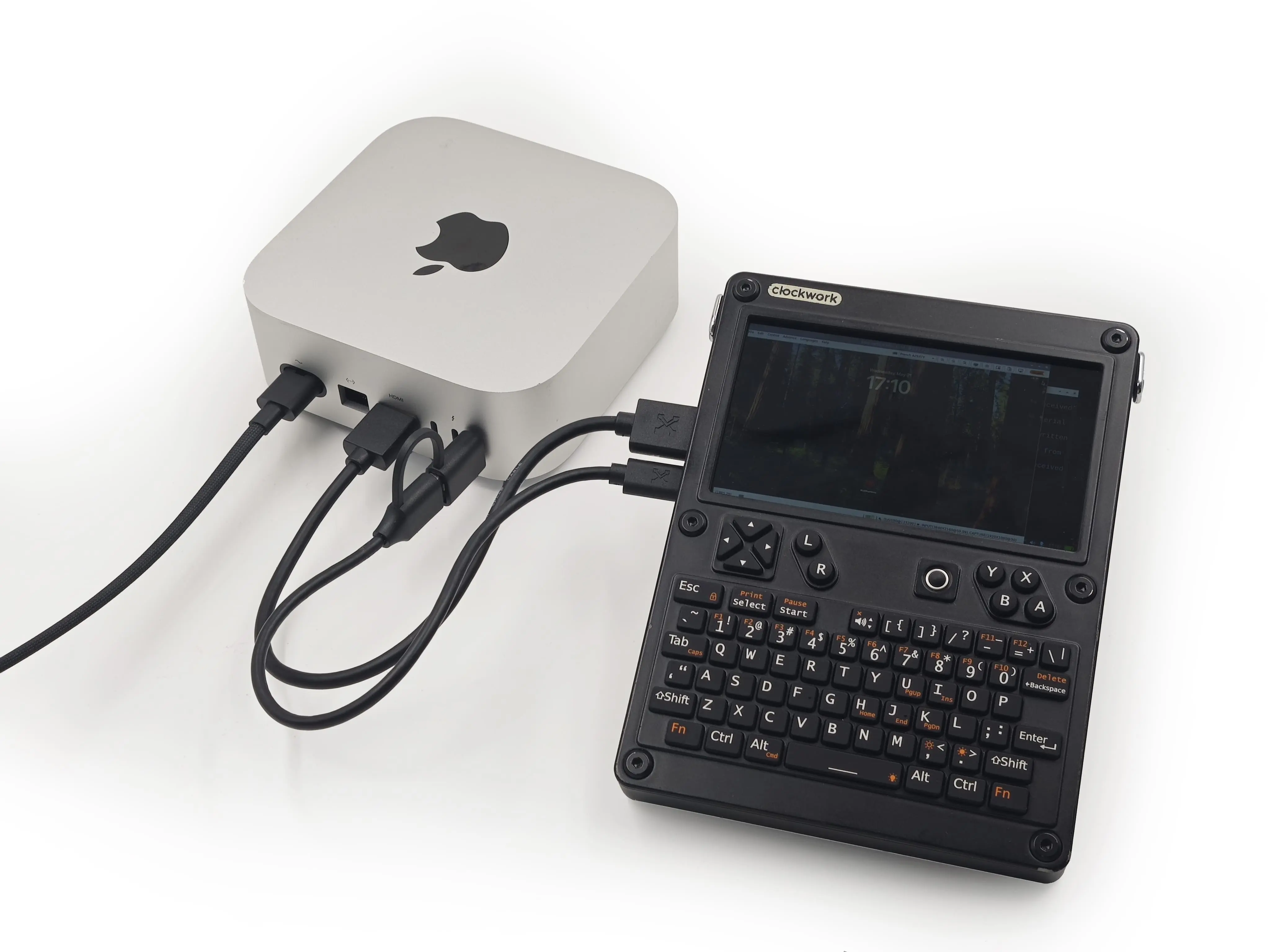

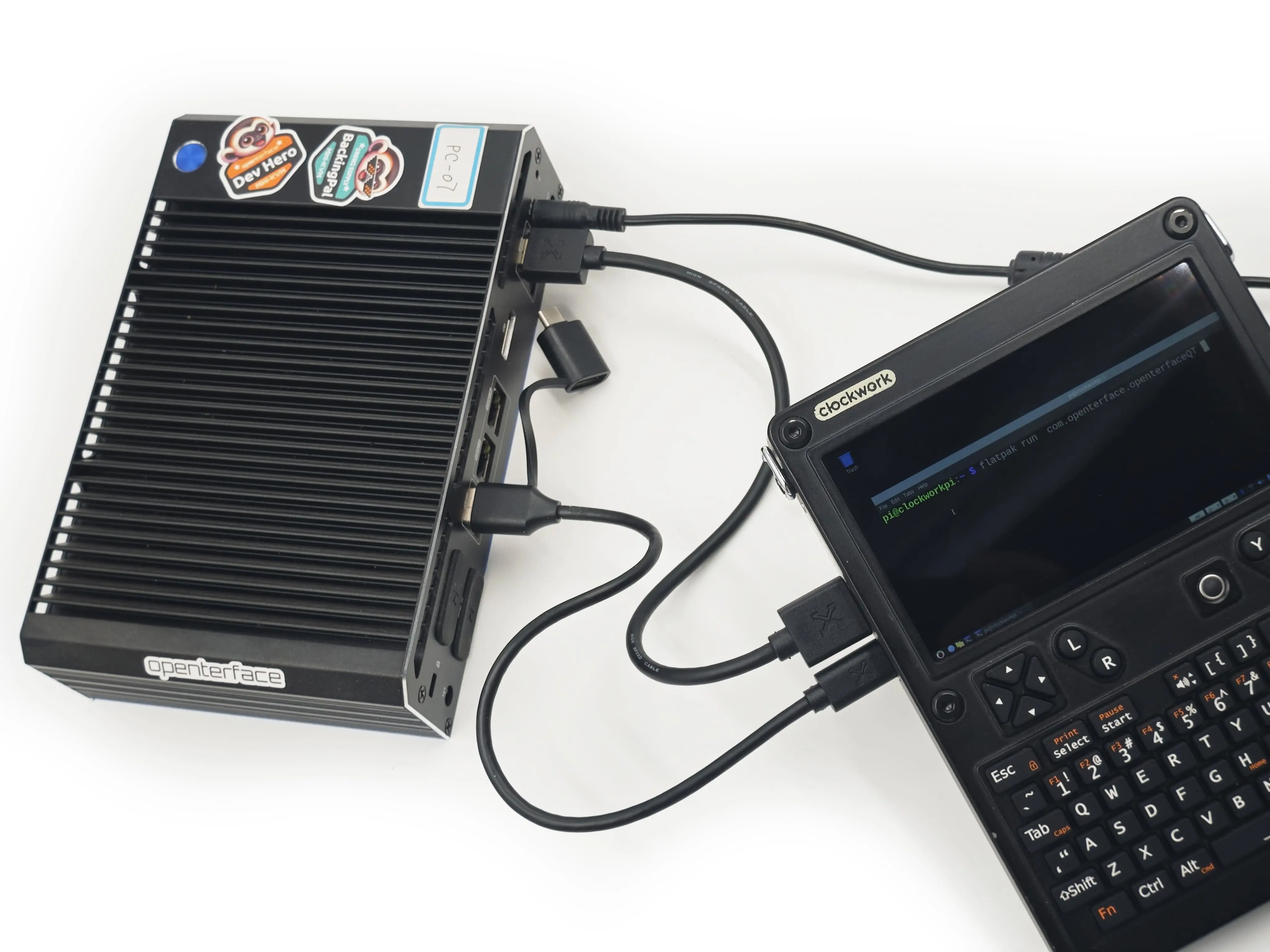

KVM Extension Connected to Target Device 2

Overview

Transform your uConsole into a portable KVM (Keyboard, Video, Mouse) console with this plug-and-play extension board.

The Openterface KVM Extension replaces the original 4G/LTE modem in your uConsole’s expansion slot and provides direct HDMI input and USB HID control, allowing you to manage headless devices on the go—without the need for external monitors, keyboards, or network configuration.

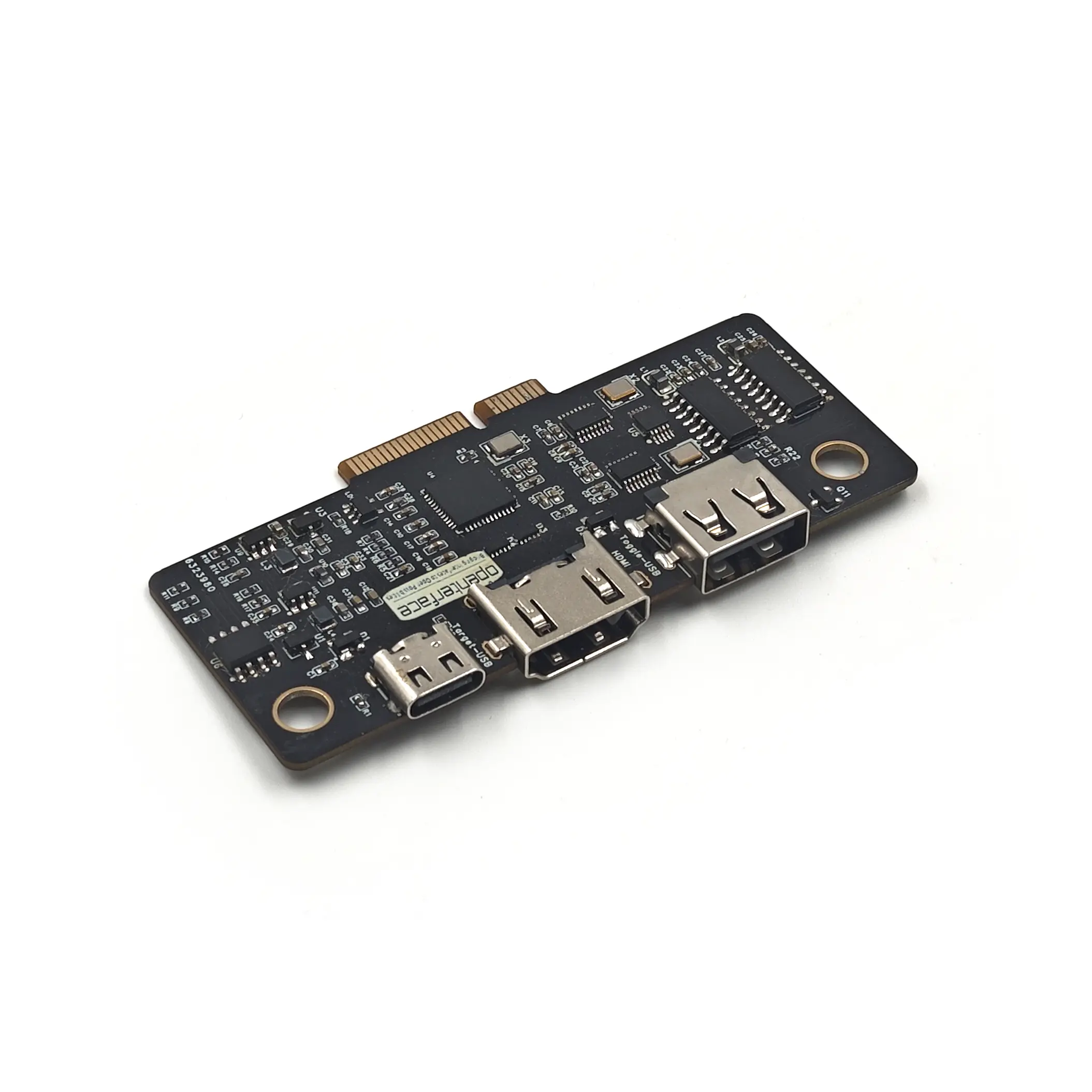

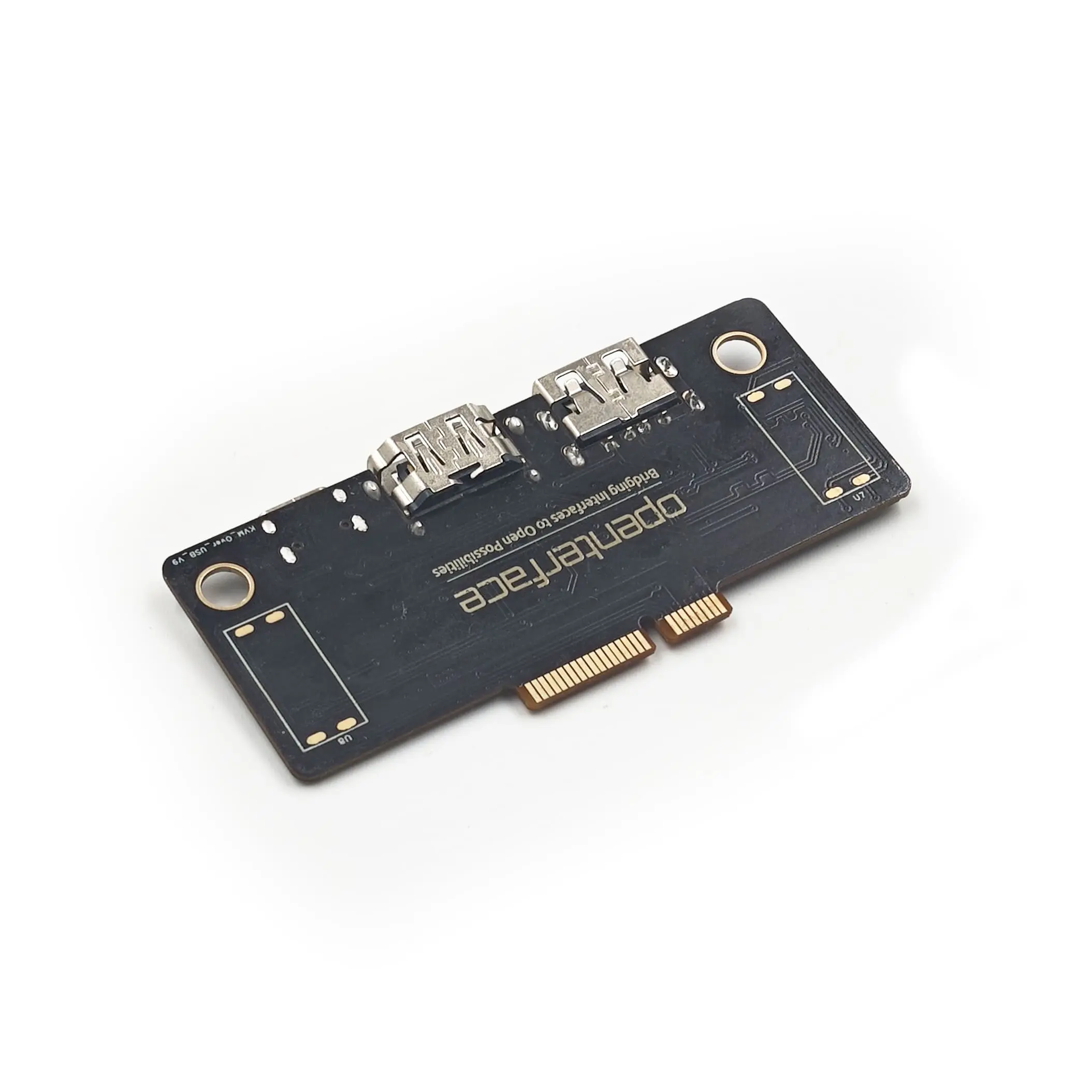

KVM Extension Board Front Side KVM Extension Board Backm Side

Features

  • Perfect Form Factor
    Matches the 37×77 mm size of the 4G/LTE module for seamless hardware integration.

  • Direct HDMI + USB HID
    Enables responsive control of connected devices using uConsole's built-in input and screen.

  • Low Latency
    Suitable for BIOS-level troubleshooting and real-time interaction.

  • Truly Portable
    Makes the uConsole a mobile tool for developers, engineers, and technicians.

  • Open-Source Friendly
    Built on the Openterface KVM platform. Community contributions welcome.

Use Cases

  • System Administration
    Access and troubleshoot servers or embedded devices without a bulky KVM switch.

  • Hardware Development
    Test and debug Raspberry Pi, SBCs, or microcontrollers directly.

  • Field Deployment
    Perform maintenance or configuration in data centres or remote locations.

Setup Guide

To use the KVM Extension, install the Openterface App on your uConsole.

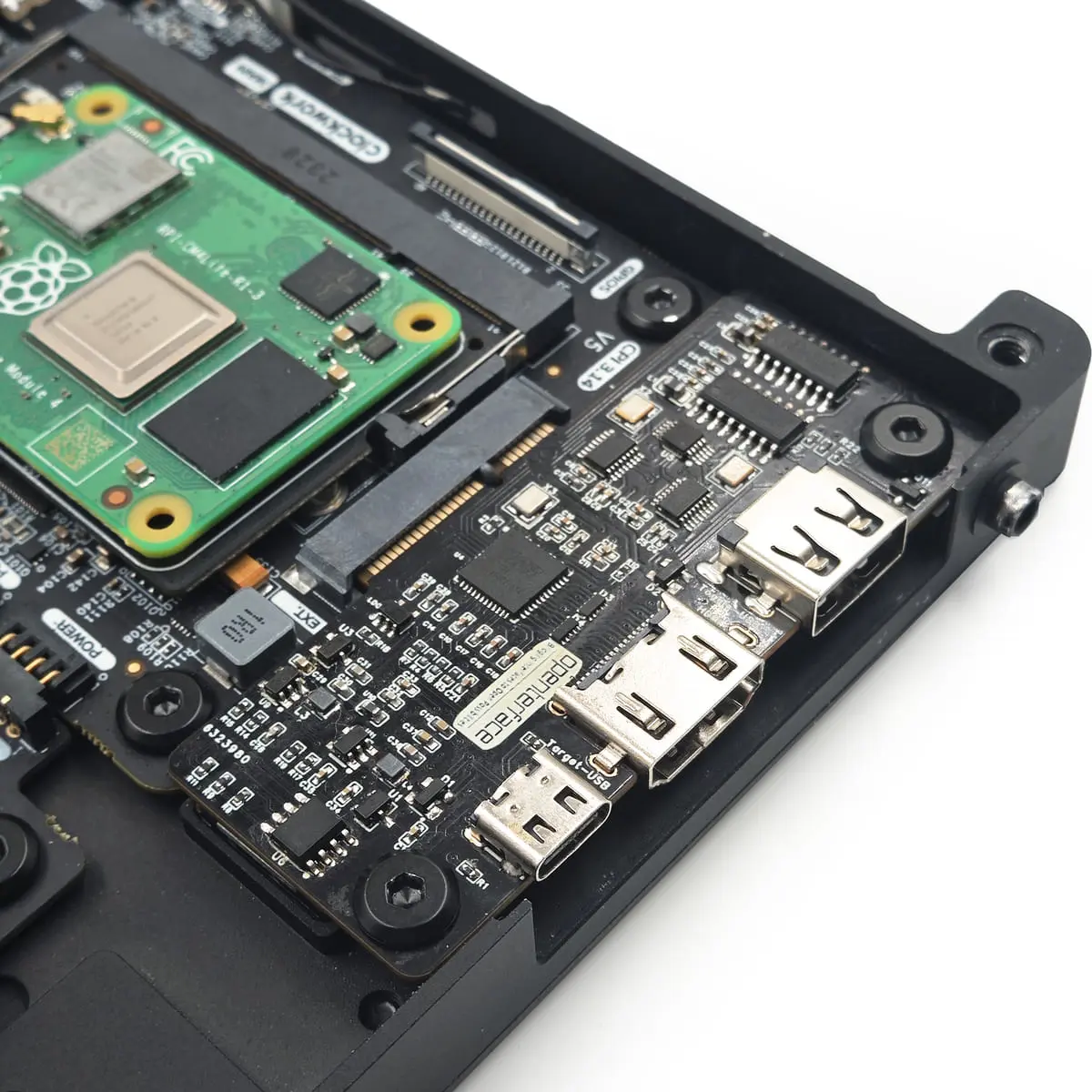

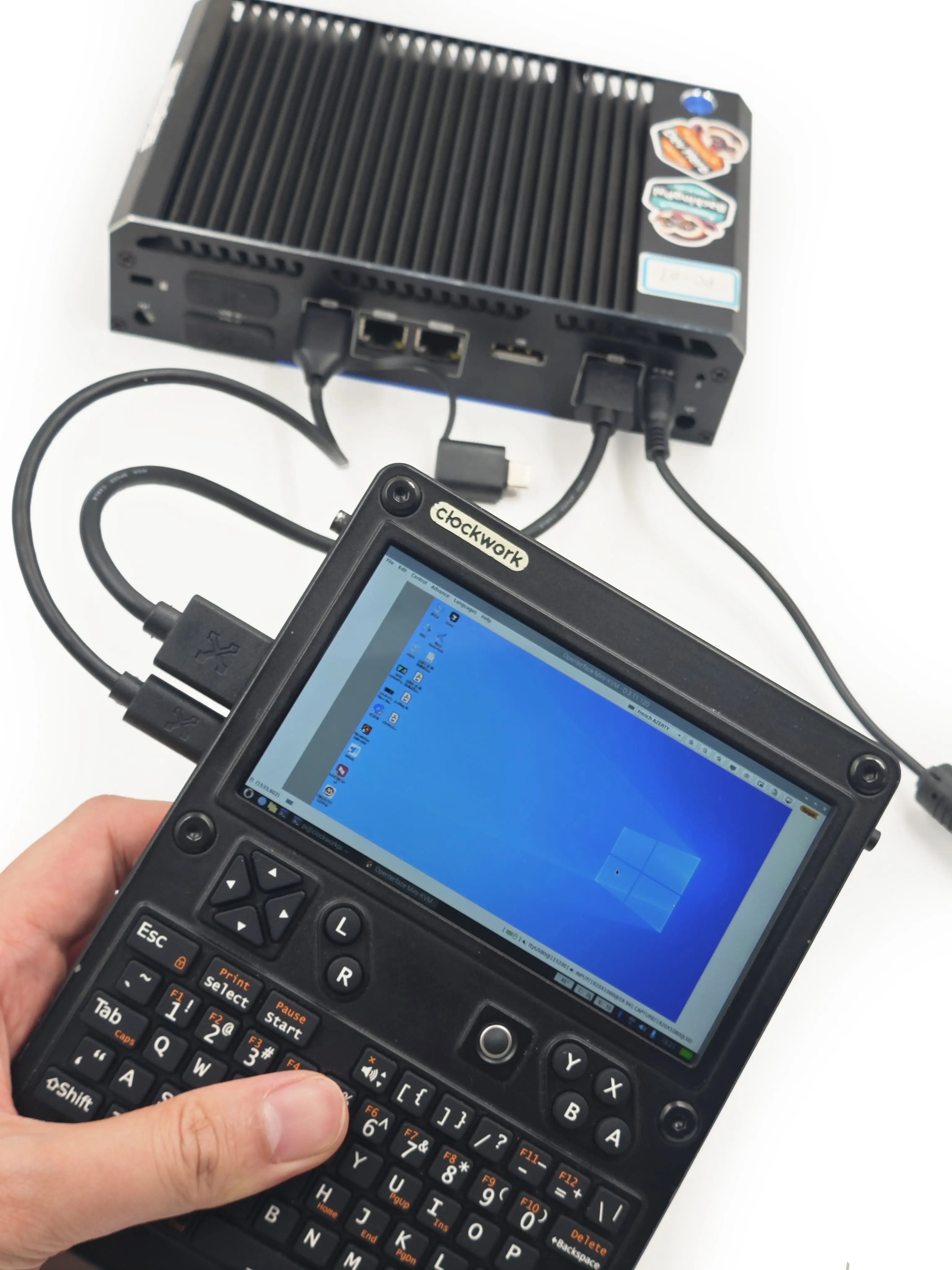

Installing KVM Extension into uConsole KVM Extension Connected to Target Device 1c

Pre-Launch Status

  • 📦 First batch currently in preparation
  • ⏳ Estimated shipping begins in ~2 months
  • 🛒 Limited quantity – Pre-order now to reserve your unit

Pre-Order Notice
This item is currently in pre-order with an estimated lead time of approximately 2 months.
If you require other items sooner, please place a separate order. Combined orders will ship when this product is ready.

Community & Support

FAQs

Q: How does the KVM Extension Board work?
It captures HDMI output from a target device and displays it on the uConsole. At the same time, the uConsole’s keyboard and trackball are used to control the target device via USB HID emulation.

Q: Can I use this with the 4G/LTE module installed?
No – this board occupies the same expansion slot. You’ll need to choose between cellular connectivity or KVM functionality.

Q: Is the software open source?
Yes! Firmware, drivers, and installation tools are fully open-source and available on our GitHub repository.
